Name: MSI PRO B760M-E DDR5 Intel LGA1700 Micro-ATX Motherboard
Brand: MSI
SKU: B760M-E DDR5
Price: 2609.00 ZAR
Availability: InStock

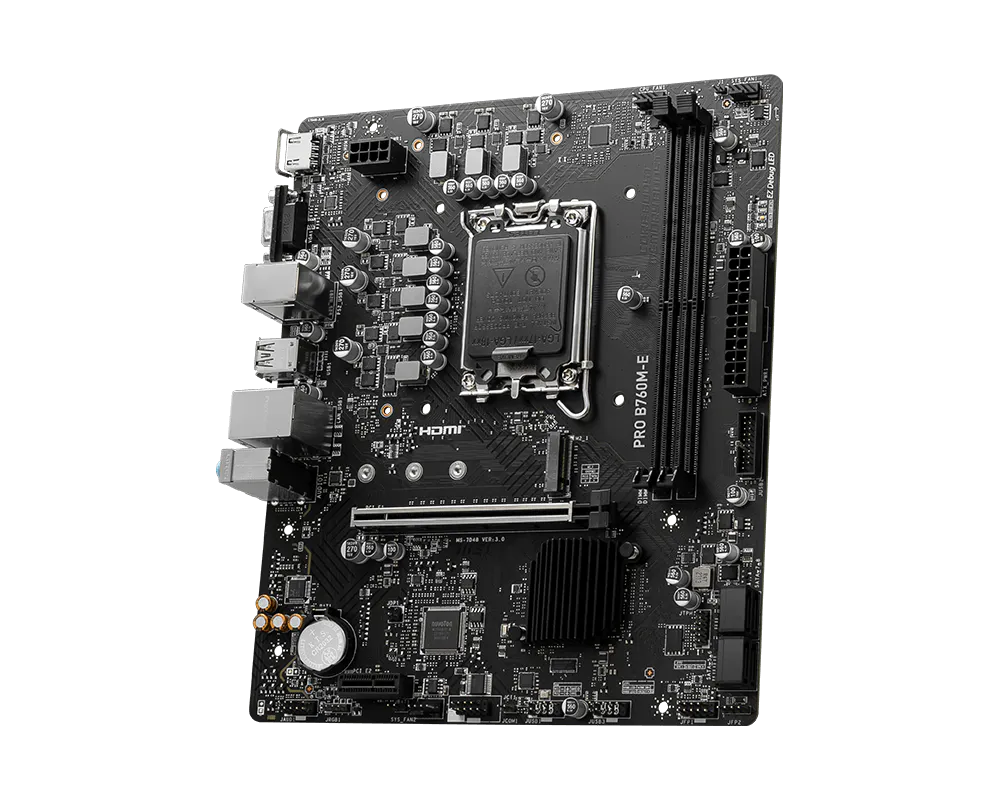

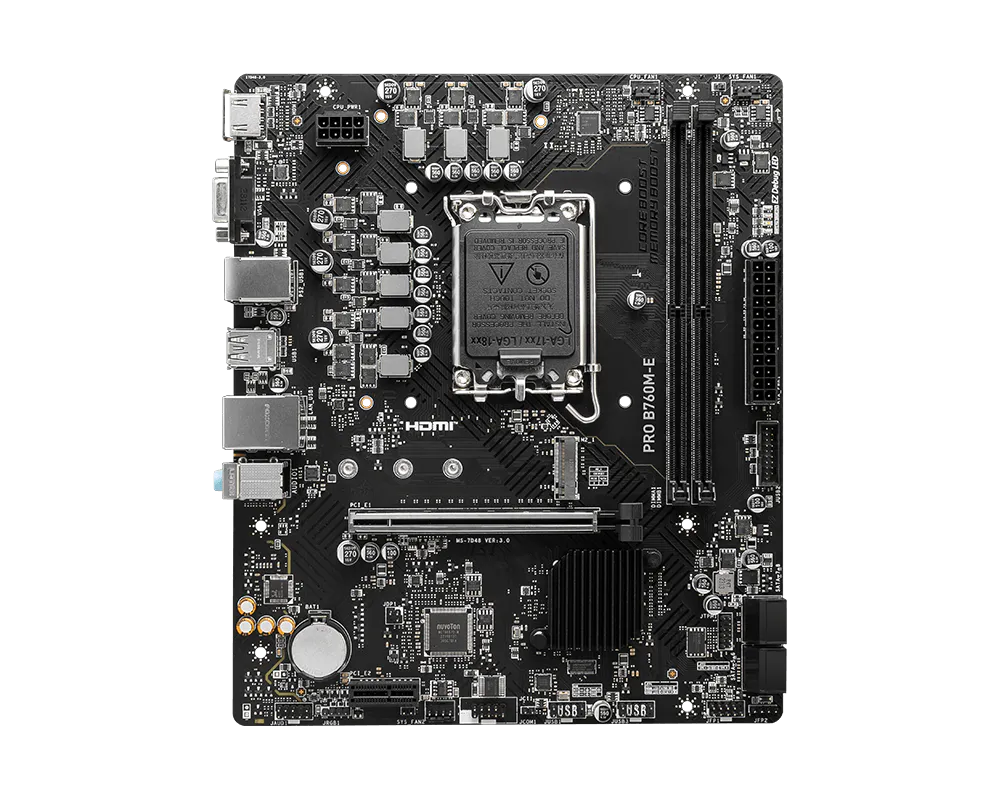

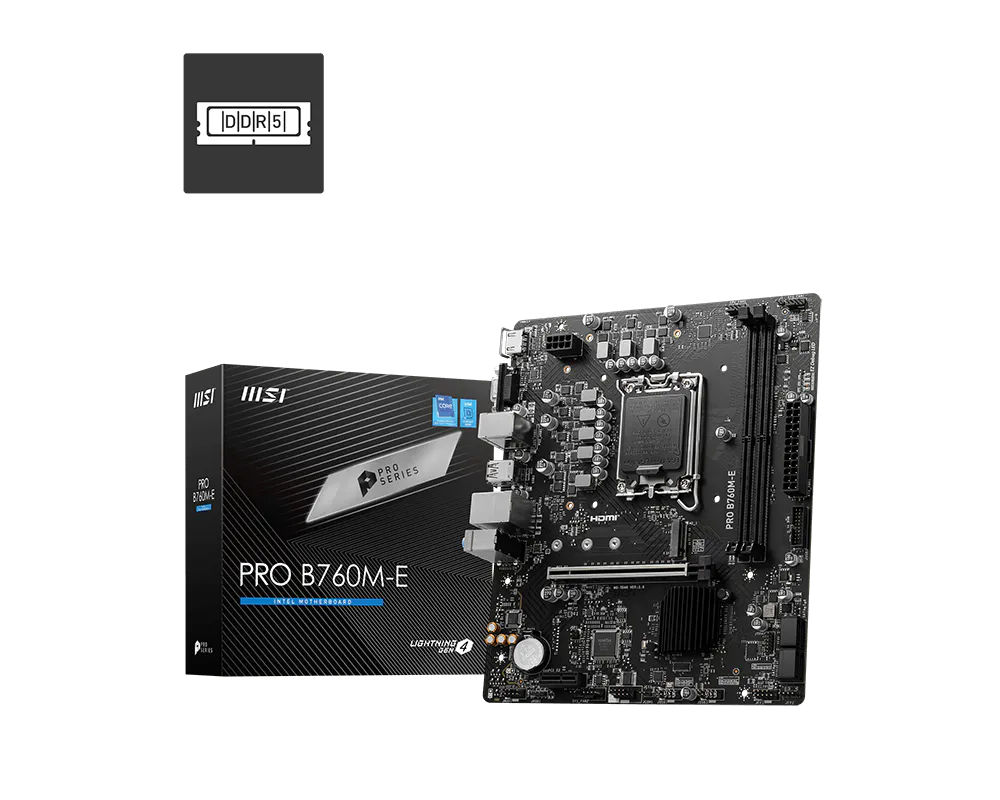

MSI PRO B760M-E DDR5 Intel LGA1700 Micro-ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU B760M-E DDR5

The MSI PRO B760M-E DDR5 is a Micro-ATX B760 board for 12th, 13th and 14th Gen Intel Core processors with DDR5 support. It uses the B760 chipset and the LGA 1700 socket.

Key features

Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
2x DDR5, Maximum Memory Capacity 128GB
1x M.2 slot plus 4x SATA 6G
Realtek RTL8111H Gigabit LAN
mATX form factor (200mmx236.16mm)

Specifications

Chipset	Intel B760
CPU support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Socket	LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB
Memory support	DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); 1x PCI-E x1 slot
Storage	1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x VGA
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	mATX 200mmx236.16mm
