Name: MSI PRO B650-S WiFi AMD AM5 ATX Motherboard
Brand: MSI
SKU: PRO B650-S WIFI
Price: 4059.00 ZAR
Availability: InStock

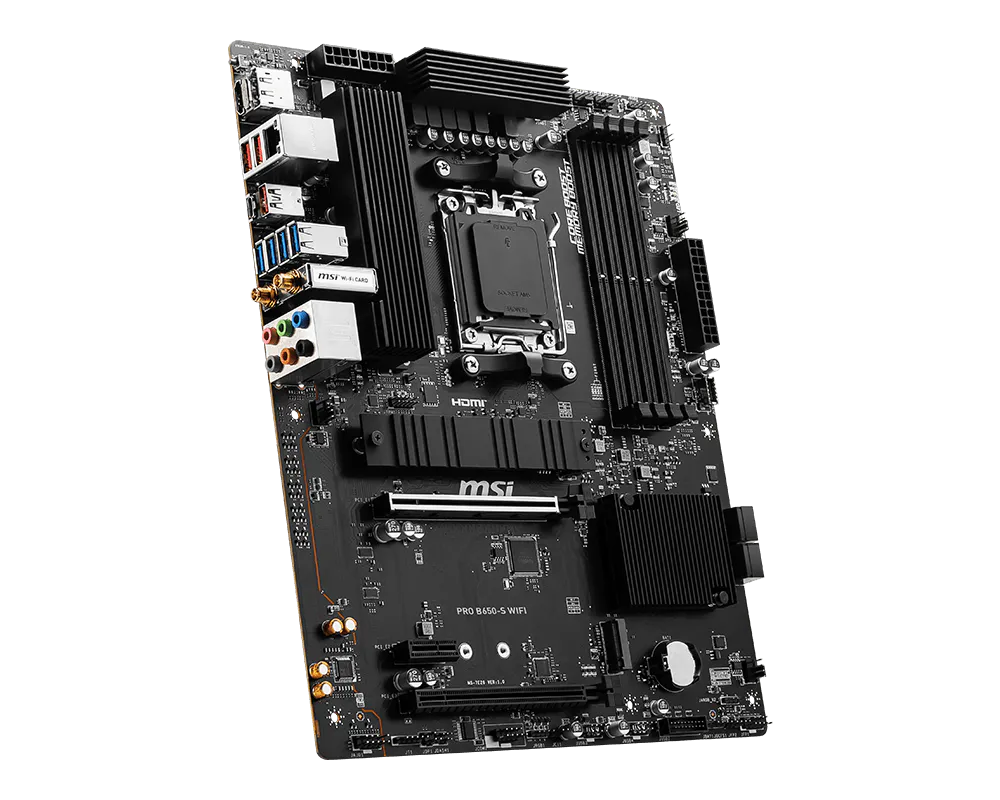

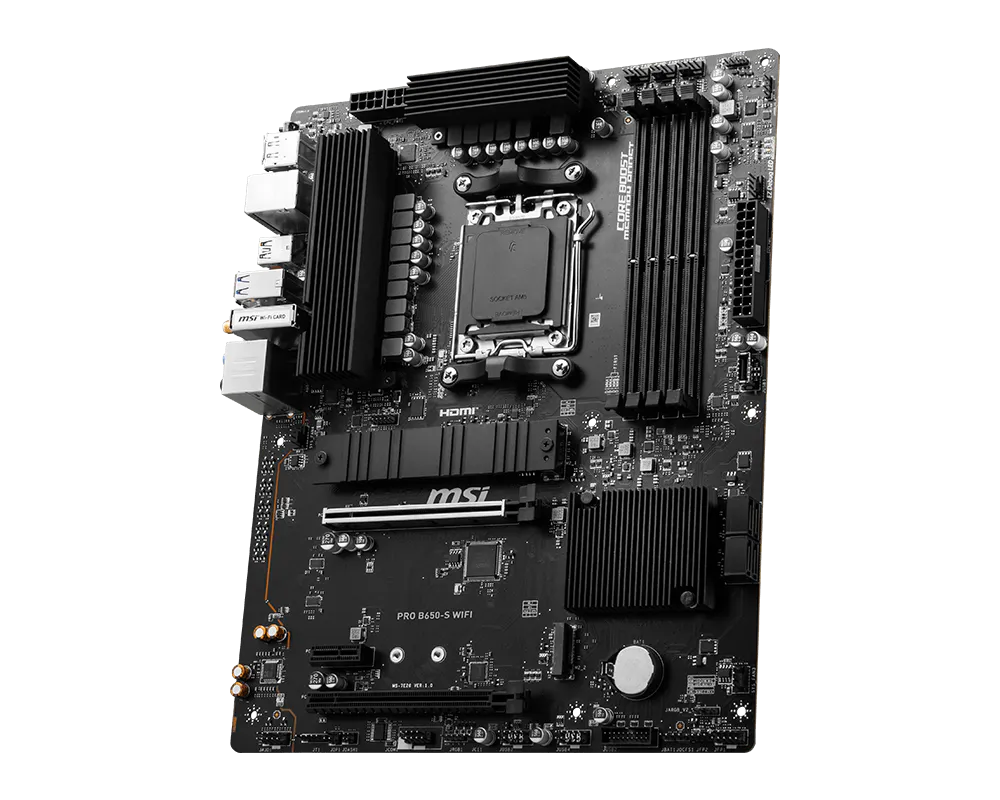

MSI PRO B650-S WiFi AMD AM5 ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU PRO B650-S WIFI

The MSI PRO B650-S WiFi is an ATX AM5 board for AMD Ryzen 9000, 8000 and 7000 processors with four DDR5 slots, Wi-Fi 6E and 2.5G LAN. It uses the B650 chipset and the AM5 socket.

Key features

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
4x DDR5, Maximum Memory Capacity 256GB
2x M.2 slots plus 4x SATA 6G
Realtek 8125BG 2.5G LAN and Wi-Fi 6E
ATX form factor (243.84mmx304.8mm)

Specifications

Chipset	AMD B650
CPU support	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB
Memory support	DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Expansion slots	2x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); 1x PCI-E x1 slot
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x DisplayPort
USB	4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
LAN	Realtek 8125BG 2.5G LAN
Wireless	Wi-Fi 6E
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	ATX 243.84mmx304.8mm
