Name: MSI B860M GAMING PLUS WIFI Micro-ATX Motherboard, Intel B860, Wi-Fi 7, LGA1851
Brand: MSI
SKU: B860M GAMING PLUS WIFI
Price: 4829.00 ZAR
Availability: InStock

MSI B860M GAMING PLUS WIFI Micro-ATX Motherboard, Intel B860, Wi-Fi 7, LGA1851

Brand MSI

0 /5.0 (0 reviews)

SKU B860M GAMING PLUS WIFI

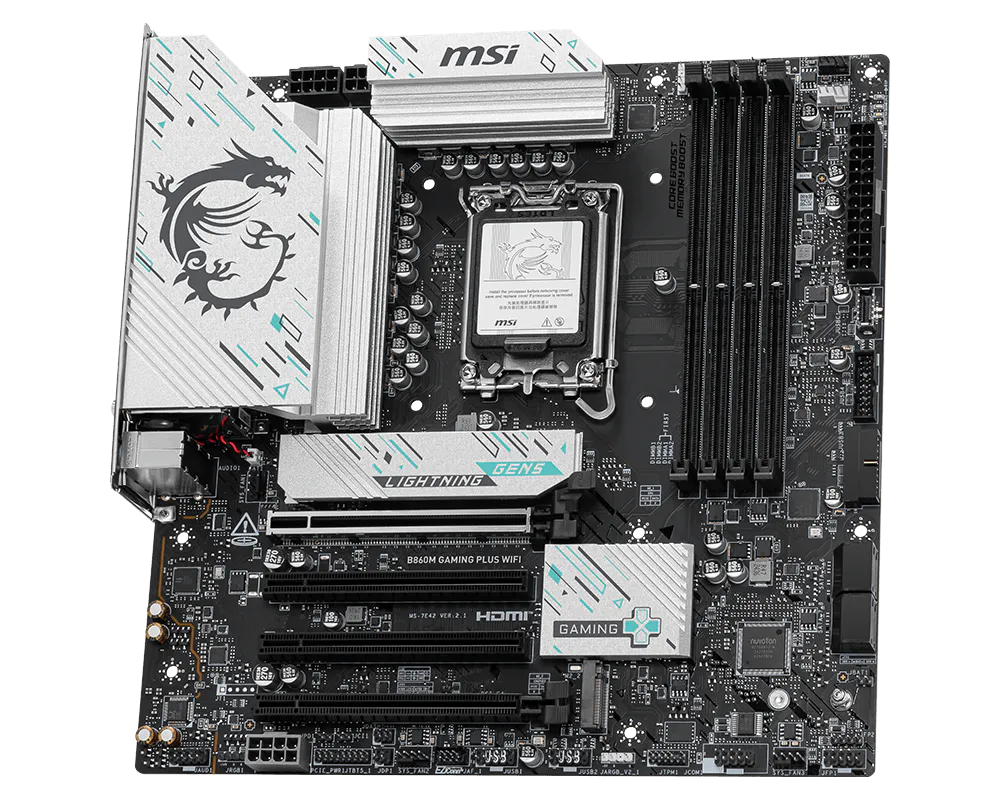

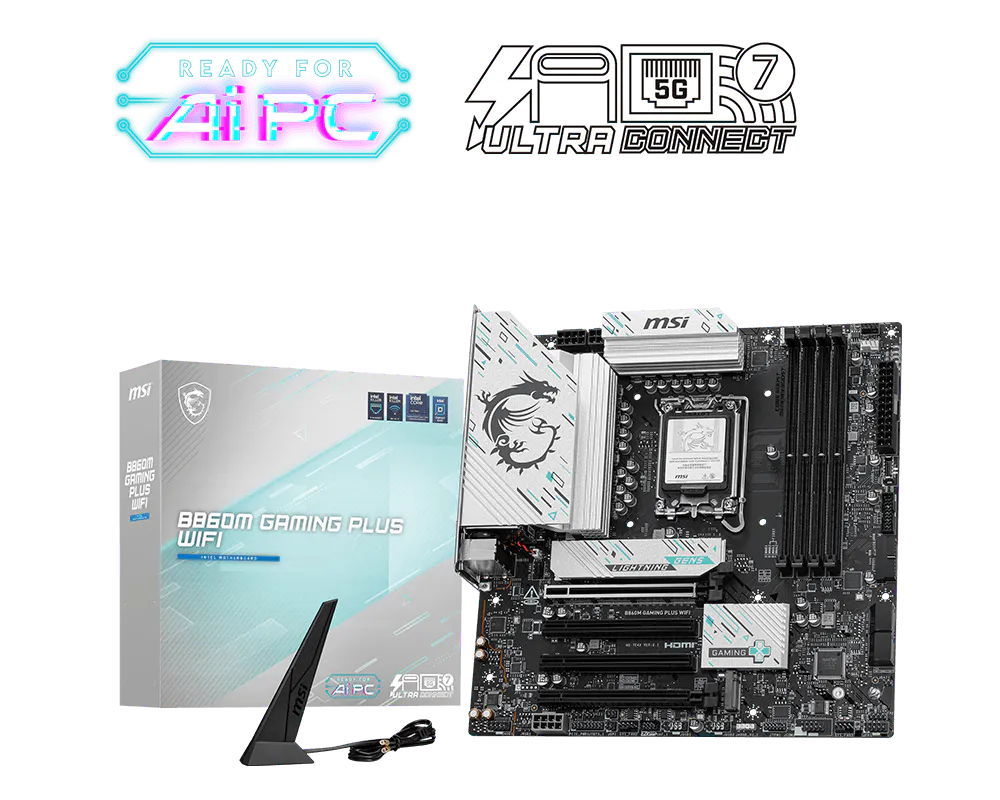

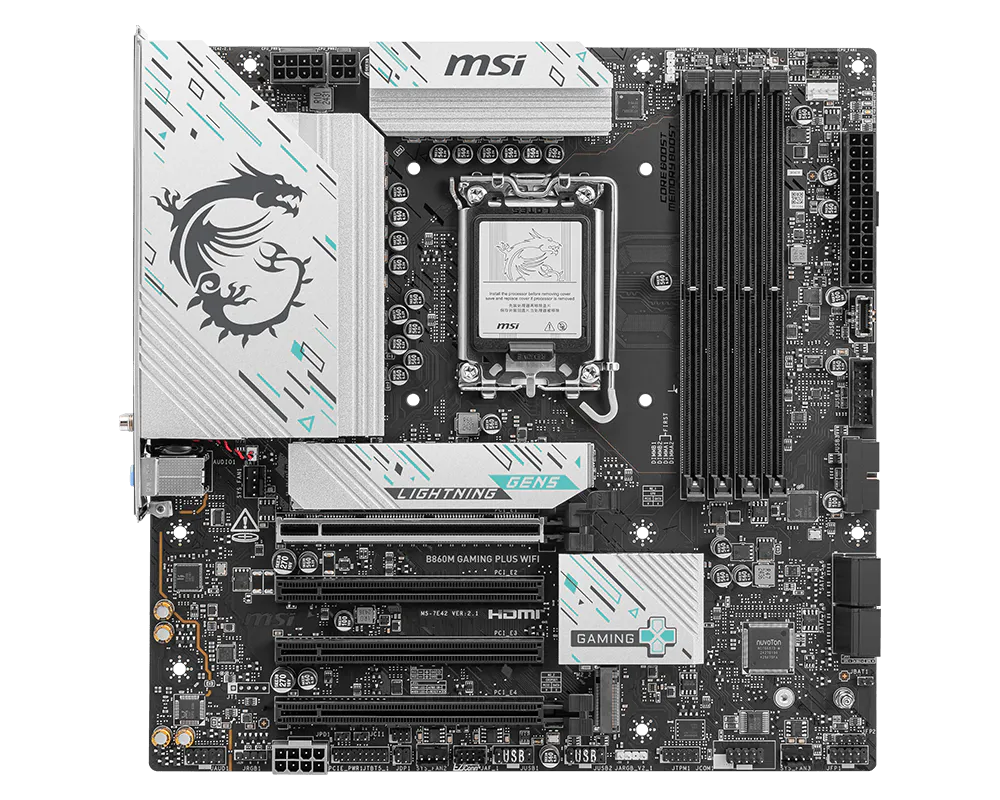

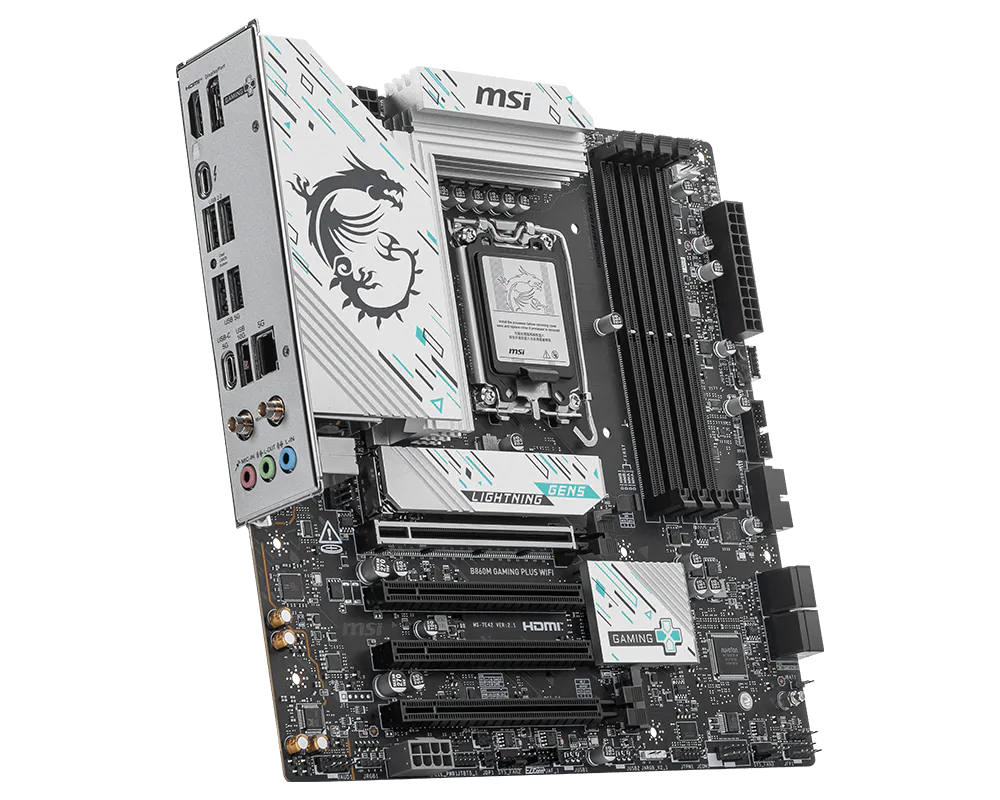

The MSI B860M GAMING PLUS WIFI is a Micro-ATX board for Intel Core Ultra (Series 2) processors on LGA1851. It pairs DDR5 support up to 8800+ MT/s with a PCIe 5.0 graphics slot, a PCIe 5.0 M.2 slot, Thunderbolt 4, 5G LAN and Wi-Fi 7.

Key features

Supports Intel Core Ultra Processors (Series 2), LGA1851
4x DDR5 slots, up to 256 GB, up to 8800+ MT/s (OC)
PCIe 5.0 x16 graphics slot
3x M.2 slots including one PCIe 5.0 x4, plus 4x SATA
Rear Thunderbolt 4 port (40Gbps)
Intel Killer E5000 5G LAN, Wi-Fi 7 and Bluetooth 5.4

Specifications

Brand	MSI
Model	B860M GAMING PLUS WIFI
Chipset	Intel B860
Socket	LGA1851
Memory	4x DDR5 UDIMM, max 256 GB, up to 8800+ MT/s (OC), CUDIMM support
Expansion	4x PCIe x16 slots (PCIe 5.0 x16 from CPU, PCIe 4.0 x1, x1, x4)
Storage	3x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G
Thunderbolt	1x Thunderbolt 4 (rear)
Video out	1x HDMI 2.1, 1x DisplayPort 1.4, Thunderbolt 4 DisplayPort
LAN	Intel Killer E5000 5Gbps
Wireless	Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4
Audio	Realtek ALC897, 7.1 channel
Form factor	mATX, 243.84 x 243.84 mm
