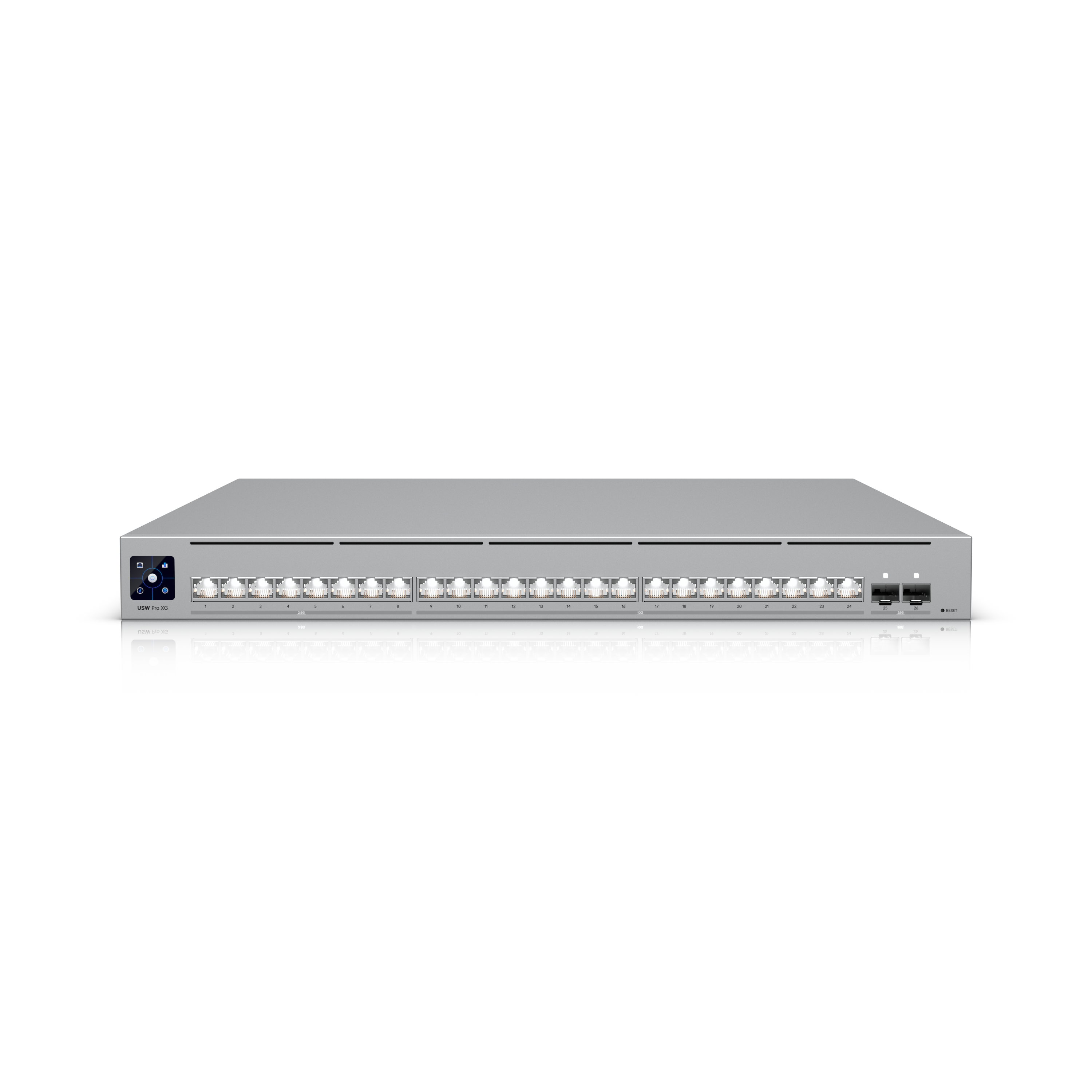

Name: Ubiquiti UniFi Switch Pro XG 24 16x 10GbE 8x 2.5GbE 2x SFP28
Brand: Ubiquiti
SKU: USW-PRO-XG24
Price: 26995.00 ZAR
Availability: InStock

Ubiquiti UniFi Switch Pro XG 24 16x 10GbE 8x 2.5GbE 2x SFP28

0 /5.0 (0 reviews)

SKU USW-PRO-XG24

A 1U Layer 3 switch with sixteen 10 GbE ports, eight 2.5 GbE ports and two 25G SFP28 uplinks. It suits servers, workstations and fast WiFi 7 access point deployments.

Key features

16 x 10 GbE and 8 x 2.5 GbE RJ45 ports
2 x 25G SFP28 uplinks
460 Gbps switching capacity
Layer 3 routing with Etherlighting
Redundant power with UniFi RPS

Specifications

Dimensions	442 x 480 x 44 mm; (17.4 x 18.9 x 1.7")
Port Layout (2.5 GbE RJ45)	8; (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
Port Layout (10 GbE RJ45)	16; (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
Port Layout (25G SFP28)	2; (25G/10G/1G)
Redundancy	DC Power Backup (With UniFi RPS.)
Form Factor	Rack mount (1U)
Switching Capacity	460 Gbps
Total Non-Blocking Throughput	230 Gbps
Supported VLANs	1,000
MAC Address Table Size	32,000
Max. Power Consumption	150W
Power Method	(1) Universal input, 100-240V AC, 50/60 Hz; (1) USP RPS DC input
Power Supply	AC/DC, internal, 200W
Weight	Without mounting brackets: 7.2 kg (15.9 lb); With mounting brackets: 7.3 kg (16.1 lb)
Enclosure Material	SGCC steel
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Certifications	CE, FCC, IC, Anatel: 06464-25-08356
