Name: Ubiquiti UISP airFiber 11 High-Band Backhaul Radio with 35 dBi Dish (AF11-Complete-HB)
Brand: Ubiquiti
SKU: AF-11KIT-H
Price: 35850.00 ZAR
Availability: InStock

Ubiquiti UISP airFiber 11 High-Band Backhaul Radio with 35 dBi Dish (AF11-Complete-HB)

0 /5.0 (0 reviews)

SKU AF-11KIT-H

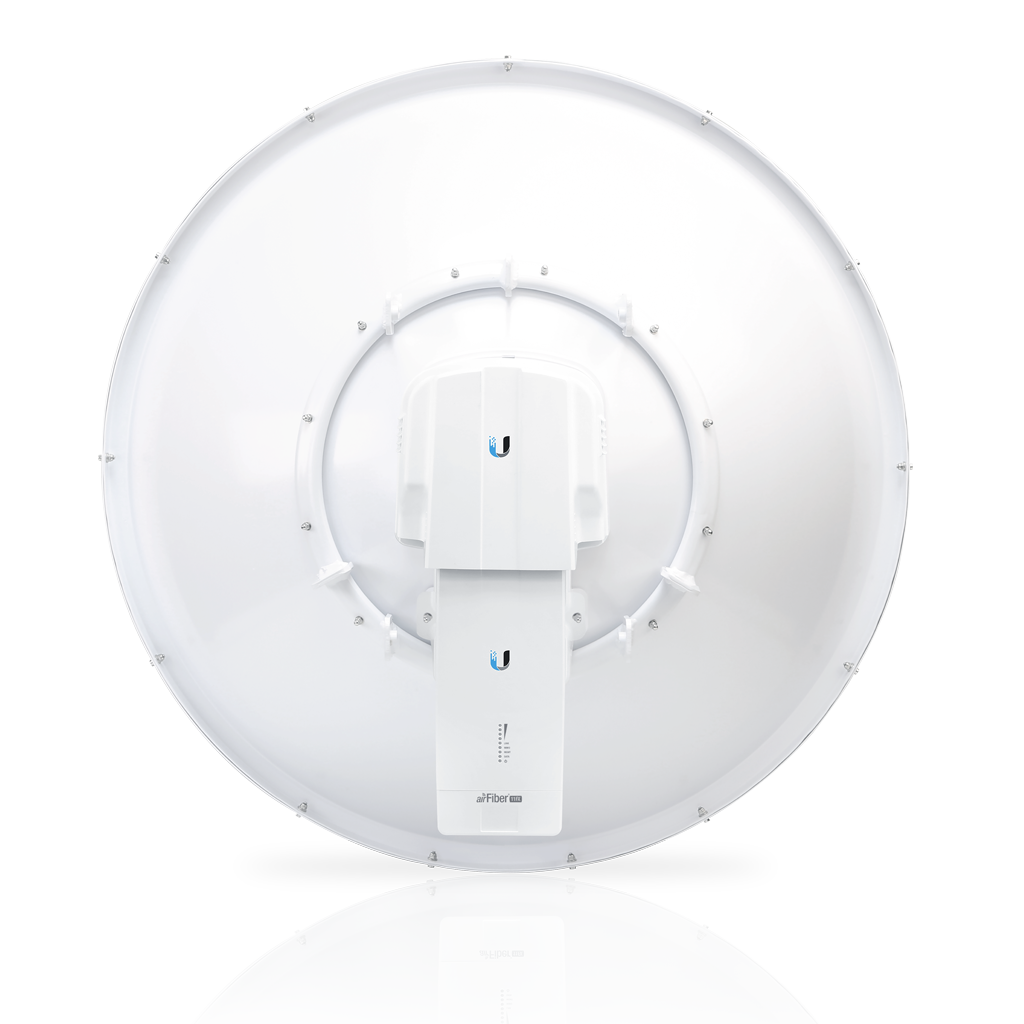

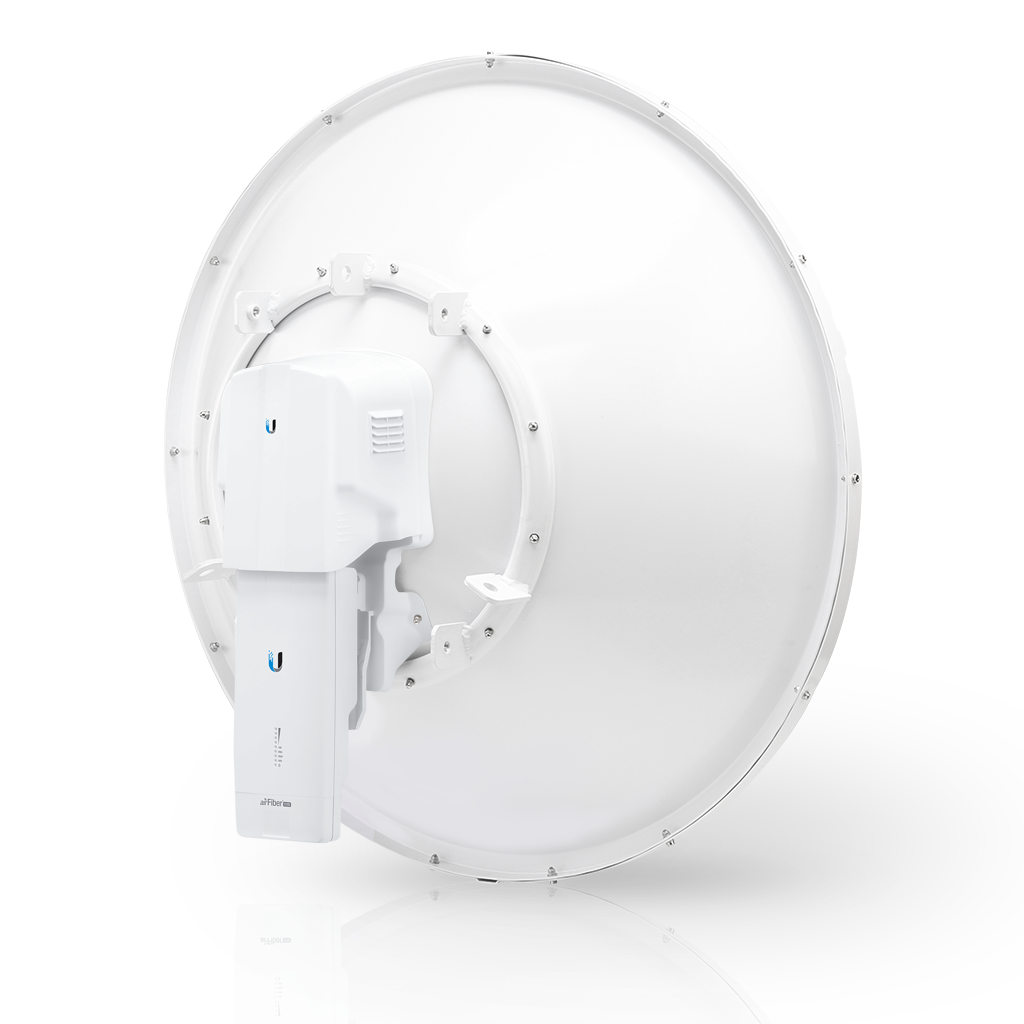

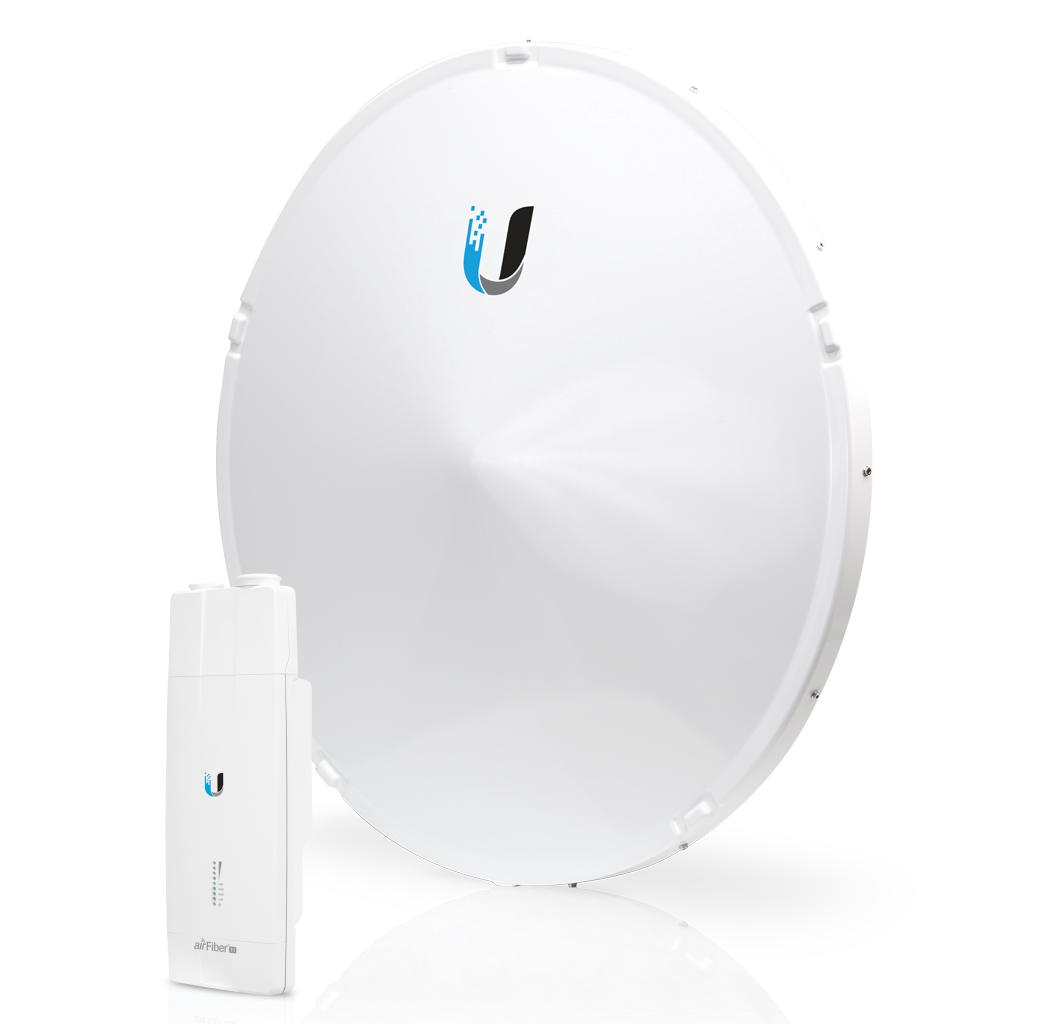

A complete licensed-band point-to-point link end: the airFiber AF-11 radio for the 11 GHz high band, paired with the AF-11G35 35 dBi dish. It is built for long carrier and ISP backhaul links, with Ubiquiti quoting over 1.2 Gbps throughput and ranges past 300 km. One high-band duplexer comes pre-installed for SISO; a second (AF-11-DUP-H) is sold separately for MIMO.

Key features

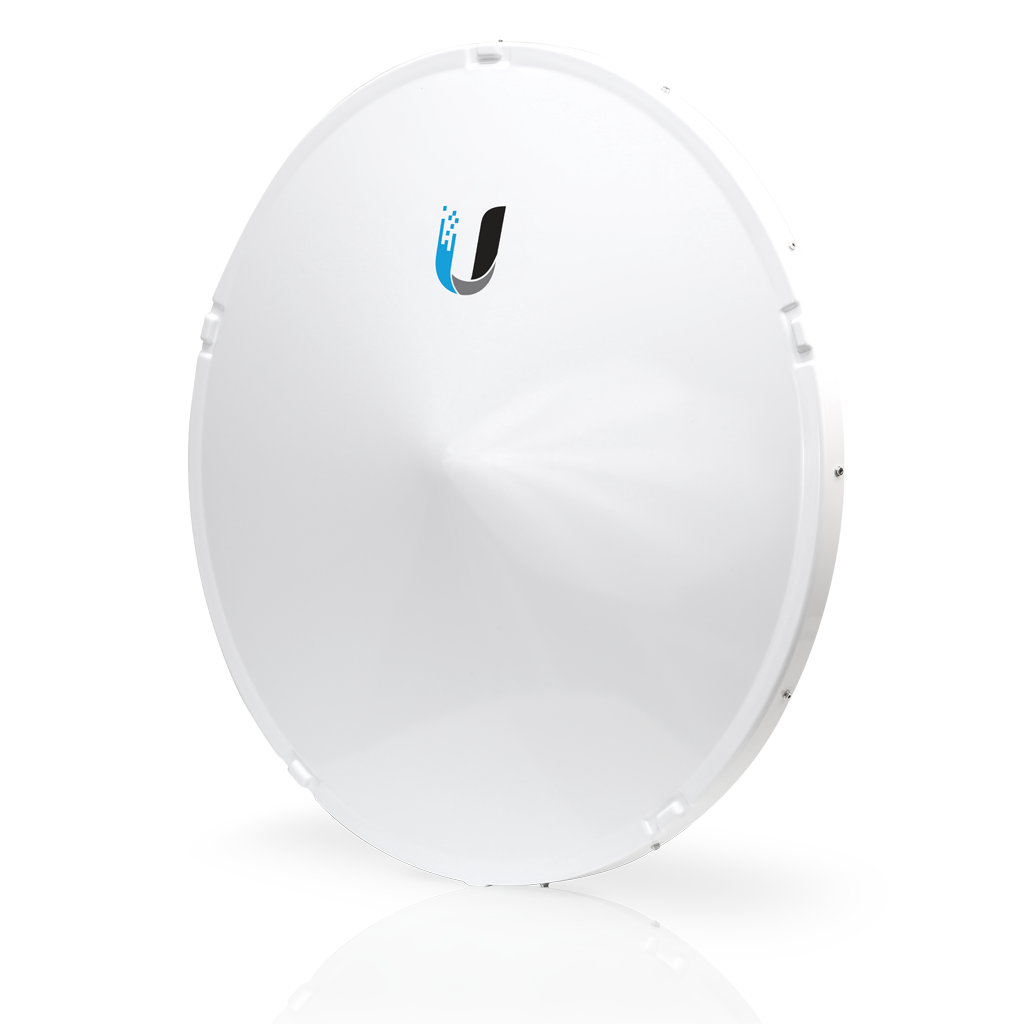

airFiber AF-11 radio plus AF-11G35 35 dBi dish antenna
11 GHz high band, 10.7 to 11.7 GHz operating range
Max throughput of 1.2+ Gbps and range of 300+ km
Channel widths from 3.5 MHz up to 56 MHz
128-bit AES encryption
50 V gigabit PoE adapter included

Specifications

Radio	airFiber AF-11
Antenna	AF-11G35, 35 dBi
Operating frequency	10.7 to 11.7 GHz (depends on regional regulations)
Max throughput	1.2+ Gbps
Max range	300+ km
Max conducted TX power	30 dBm
Networking	1x GbE RJ45, 1x 10/100 RJ45
Power	Passive PoE, 50 V 1.2 A gigabit PoE adapter included
Max power consumption	36 W
Encryption	128-bit AES
Dish beamwidth	2.5 degrees (H and V)
Dish dimensions	811 x 811 x 460 mm
Dish weight with mount	11.85 kg
Operating temperature	-40 to 55 C
